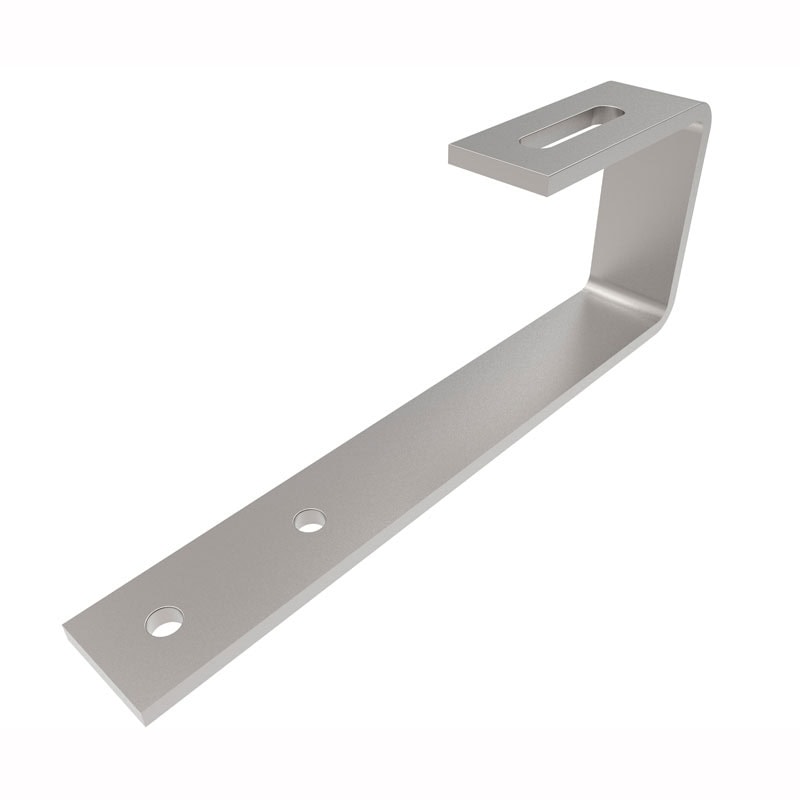

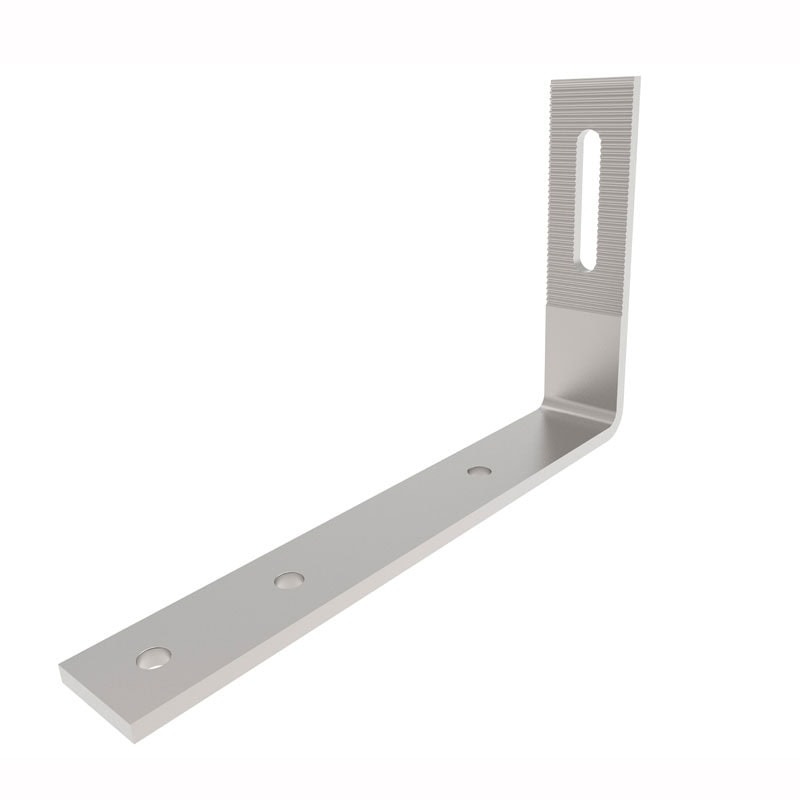

Solar Tile Roof Hook Bracket Mounting

Tile roof solar mounting standard
Material: Hot-dip galvanized steel, SS304 stainless steel; tensile strength ≥450MPa, corrosion-resistant for outdoor use
Structure: Arc tile-fitting base + 2-way adjustable hook + anti-slip serrations + water-proof rubber gasket + pre-drilled holes
Surface Treatments: Hot-dip galvanizing (salt spray ≥1000h), stainless steel passivation, optional color powder coating (matches roof tiles).
Size: Thickness 2.5–4.5mm, adjustment angle ±15°, load-bearing 60–150kg, fits flat/curved tiles (tile thickness 8–25mm)

Core features of Solar Tile Roof Hook Bracket Mounting

Tile-Adaptive Design: Arc base fits tile contours; water-proof gasket prevents rain leakage, avoiding roof damage
Stable Fixing: Anti-slip serrations enhance friction with tiles; adjustable hook locks tightly, resisting wind uplift
Non-Destructive Installation: Avoids breaking tiles; pre-drilled holes match special expansion bolts for secure fixing
Weather Resistance: Corrosion-resistant material/coating adapts to rain, UV, and temperature changes, service life ≥20 years

Wide Compatibility: Matches all PV panel types; applicable to ceramic, concrete, and clay tile roofs (residential/commercial)

Product Parameter (Specification)

Dimensions	Customized	Material	Carbon steel, Stainless Steel,Brass,Aluminum
Unit	Piece	Packing	Bulk cartons with pallet or customized packing

Solar Tile Roof Hook Bracket Mounting for Furniture Application Scenario Table

Application Field	Specific Scenarios	Standards & Grades	Key Considerations
Residential Tile Roofs	Concrete tile roofs, clay tile roofs, asphalt shingle tile roofs, slate tile PV installations.	SS304 (A2-70), SS316 (A4-80).	Curved design fits tile profiles; Non-destructive mounting protects waterproofing; Wind/snow load resistant for residential use.
Commercial Tile Roofs	Office building tile rooftops, hotel clay tile solar arrays, mall slate tile PV systems.	SS304, SS316.	Precise height adjustment for optimal sun exposure; Compatible with standard mounting rails; Easy assembly shortens construction time.
Historical Building Renovations	Heritage building tile roof PV retrofits, ancient architecture solar installations, protected building energy upgrades.	SS316, SS304.	Non-invasive design preserves roof structure; Corrosion-resistant for long-term use; Aesthetic compatibility with historical tiles.
Rural & Suburban PV Projects	Country house concrete tile roofs, suburban clay tile solar fixes, village slate tile PV mounts.	SS304, SS316.	Versatile for various tile types; User-friendly installation for local teams; Durable in rural outdoor environments.
