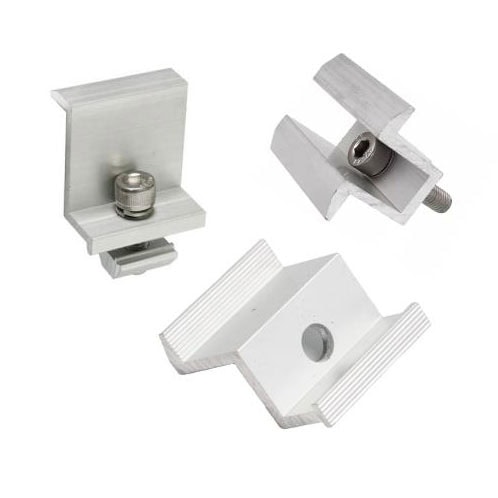

Solar Panel Mounting Aluminum End Clamp

Solar mounting hardware standard
Material: 6063-T6 aluminum alloy; tensile strength ≥310MPa, yield strength ≥276MPa, lightweight (density 2.7g/cm³)

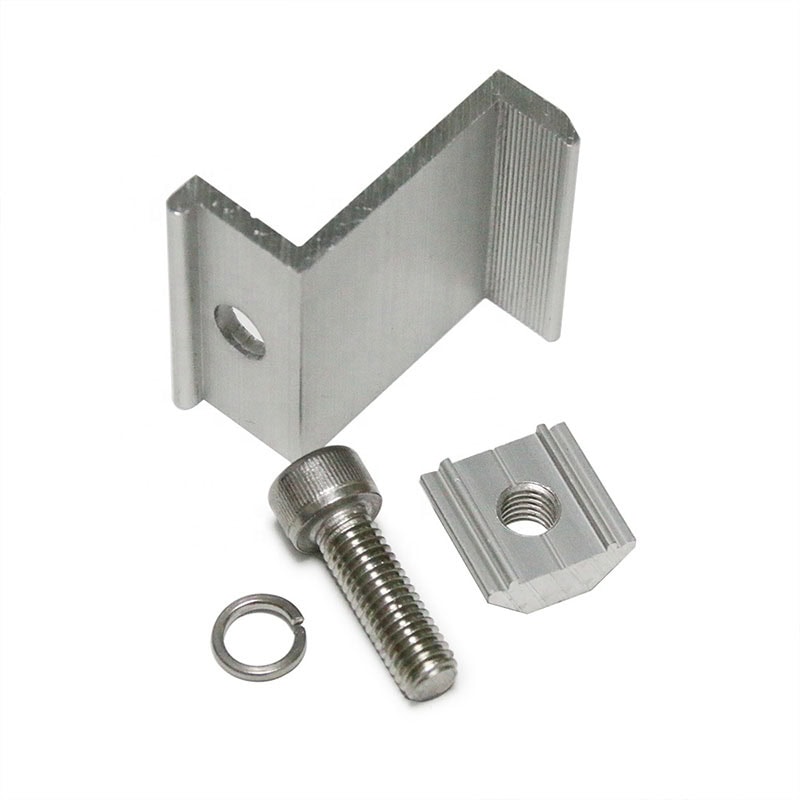

Structure: L-shaped limiting main body + adjustable clamping block + anti-scratch rubber pad + stainless steel locking bolt + guide rail adaptation groove
Surface Treatments: Anodic oxidation (salt spray resistance ≥800h), wear-resistant, anti-fingerprint, and color-stable
Size: Clamping range 3–40mm (adapts to common panel thicknesses), load-bearing 20–50kg per clamp, length 40–80mm, weight 40–100g

Core features of Solar Panel Mounting Aluminum End Clamp

End-Position Exclusive Positioning: L-shaped main body locks the panel end, preventing lateral displacement caused by wind or installation errors
Lightweight System Matching: Aluminum material reduces the overall weight of the mounting system, lowering roof load-bearing pressure
Panel Edge Protection: Soft rubber pad wraps the panel edge, avoiding scratches; even clamping force prevents edge deformation
Weather & Corrosion Resistance: Anodic oxidation layer resists outdoor rain, UV, and humidity, service life ≥15 years
Quick Installation: Guide rail adaptation groove realizes fast alignment; stainless steel locking bolt matches standard tools for efficient fixing

Wide Compatibility: Fits monocrystalline/polycrystalline/thin-film panels; applicable to rooftop, ground, and carport PV system end-position fixing

Product Parameter (Specification)

Dimensions	Customized	Material	Carbon steel, Stainless Steel,Brass,Aluminum
Unit	Piece	Packing	Bulk cartons with pallet or customized packing

Solar Panel Mounting Aluminum End Clamp for Furniture Application Scenario Table

Application Field	Specific Scenarios	Standards & Grades	Key Considerations

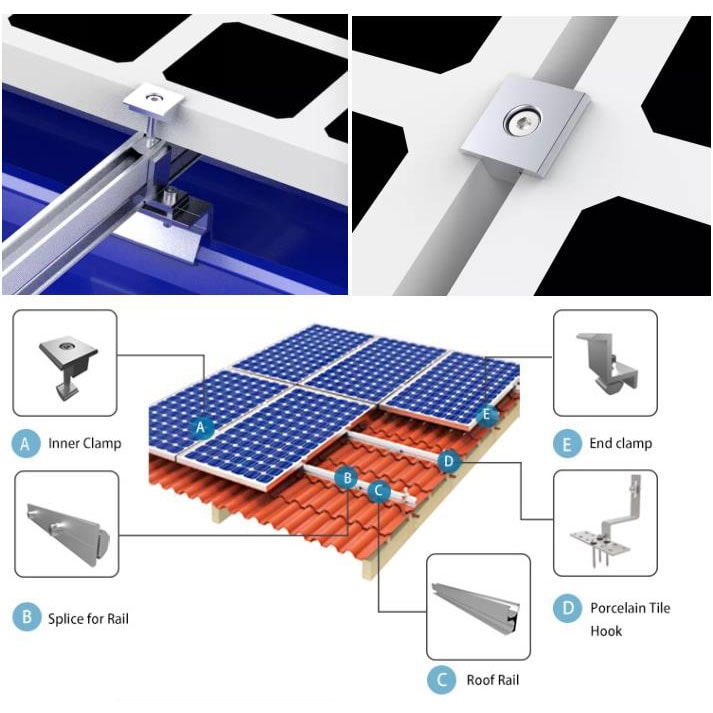

Residential PV Systems	Rooftop solar panel end fixes, metal/tile roof PV arrays, lightweight villa solar installations.	Aluminum 6061-T6, 6063-T5.	Lightweight aluminum reduces roof load; End-clamping design prevents panel displacement; Corrosion-resistant for outdoor use.
Commercial Solar Projects	Office building rooftop solar arrays, mall flat-roof PV systems, hotel sloped-roof panel fixes.	Aluminum 6061-T6.	Precise size adjustment for 10-40mm panel thicknesses; Compatible with standard mounting rails; Easy assembly for large-scale projects.
Industrial Solar Facilities	Factory metal-roof PV mounts, warehouse solar array end fasteners, industrial plant panel fixes.	Aluminum 6063-T5.	Heavy-duty clamping force for large panels; Weather-resistant in harsh environments; Durable for long-term industrial use.
Outdoor Auxiliary PV Installations	Solar carport panel ends, shed roof solar fixes, ground-mounted PV rail end clamps, portable solar kits.	Aluminum 6061/6063.	Versatile for multiple mounting scenarios; Anti-slip design protects panel edges; Tool-free adjustment for convenience.
