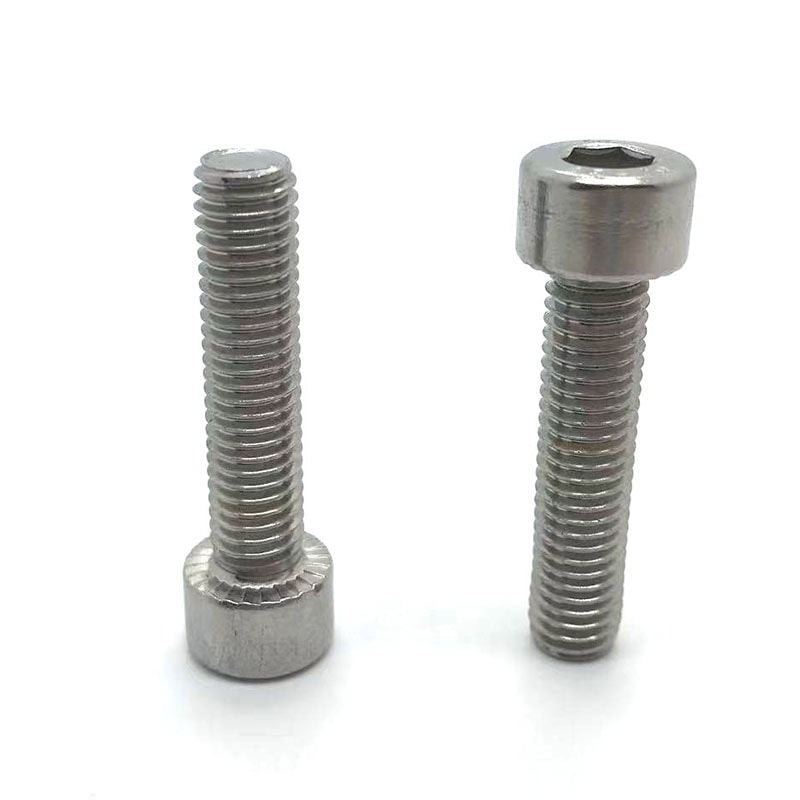

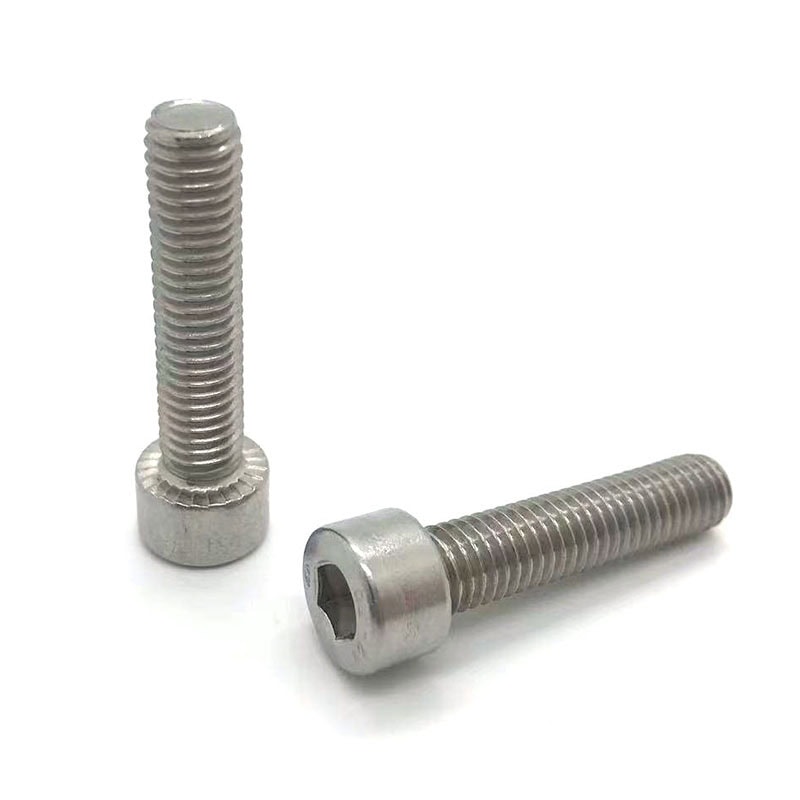

Hexagon Socket Head Cap Bolt with Serration

Core Features of Hexagon Socket Head Cap Bolt with Serration

Hexagon socket head design: Enables high-torque transmission, suitable for installation in narrow or recessed spaces, with a compact and aesthetic appearance
Serrated under head feature: Sharp serrations on the bolt head bottom bite into the workpiece surface during tightening, preventing bolt rotation and enhancing anti-loosening performance, especially effective in high-vibration environments
Excellent load-bearing capacity and shear strength, ensuring stable connection under long-term use
Corrosion resistance: Surface treatments (e.g., zinc plating, nickel plating, blackening) or stainless steel materials adapt to indoor, outdoor, and harsh working conditions

Product Parameter (Specification)

Standard	DIN,ASTM/ANSI, JIS, EN, ISO,AS	Material	Carbon steel, Stainless Steel, Aluminum,Brass
Surface Treatment	Zinc Plated, Hop Dip Galvanized(HDG) phosphorization, Black Oxide,Geomet,Dacroment,Nickel plated,Zinc-Nickel plated	Shank	Full thread, Half thread
Grade	4.8,5.8,6.8,8.8, 10.9, 12.9,B7,B7M,B8,B8M,304,316,A2,A4	Size	M3-M64
Unite	Piece,KGS,TON	Packing	Bulk cartons with pallet, small boxes in cartons with pallet

Product Application

Hexagon socket head cap screw is widely used in heavy Industry, mining, water treatment, healthcare, retail industry, general industry, automotive industry, solar system mounting etc.

Hexagon Socket Head Cap Bolt with Serration Application Scenario Table

Application Field	Specific Application Scenario	Recommended Standards & Grades	Key Considerations
1. Household Use	1. Fixing of washing machine/dryer anti-vibration bases. 2. Mounting of microwave oven/oven side brackets to kitchen cabinets. 3. Assembly of heavy-duty furniture. 4. Installation of outdoor household items. 5. Fixing of power tool storage racks.	– Standards: ISO 4762 + serration design; DIN 912 – Grades: Carbon steel Grade 4.6/5.6; Stainless steel A2-70	– Serration core advantage: Serrations on the bolt head/neck bite into the mounting surface, preventing loosening from vibration (e.g., appliance operation) or slight impacts. – Aesthetics & safety: Low-profile socket head hides sharp edges; serrations avoid surface slipping without damaging mounting materials (wood, plastic).
2. Construction Engineering	1. Fastening of lightweight ceiling decorative parts. 2. Installation of aluminum alloy door/window hinges. 3. Fixing of wall-mounted decorative panels. 4. Mounting of temporary construction handrails. 5. Connection of partition wall hardware.	– Standards: ISO 4762 + serration; ASTM F835 ; DIN 912 Grade 8.8	– Anti-loosening efficiency: Serrations eliminate the need for additional lock washers, reducing on-site part count and speeding up installation. – Vibration resistance: Critical for construction—serrations withstand minor building settlement or wind-induced vibration without loosening. – Corrosion adaptability: Stainless steel A4-80 suits outdoor/coastal construction (e.g., balcony railings) to resist salt spray.
3. Light Machinery	1. Fixing of electric tool housings. 2. Mounting of small conveyor belt brackets. 3. Assembly of 3D printer components. 4. Fixing of small pump/motor end caps. 5. Installation of workshop tool benches.	– Standards: ISO 4762 + serration; DIN 912 Grade 8.8; ASTM F835	– Vibration durability: Serrations are critical for machinery—they lock the bolt in place, avoiding performance issues from loose components. – Precision maintenance: Maintains component alignment (e.g., 3D printer print beds) where even minor shifting affects functionality. – Load capacity: Grade 8.8 carbon steel handles medium mechanical loads (≤200kg); suitable for non-heavy-duty machinery.

Application Field

Specific Application Scenario

Recommended Standards & Grades

Key Considerations

1. Household Use

1. Fixing of washing machine/dryer anti-vibration bases.

2. Mounting of microwave oven/oven side brackets to kitchen cabinets.

3. Assembly of heavy-duty furniture.

4. Installation of outdoor household items.

5. Fixing of power tool storage racks.

– Standards: ISO 4762 + serration design; DIN 912

– Grades: Carbon steel Grade 4.6/5.6; Stainless steel A2-70

– Serration core advantage: Serrations on the bolt head/neck bite into the mounting surface, preventing loosening from vibration (e.g., appliance operation) or slight impacts.

– Aesthetics & safety: Low-profile socket head hides sharp edges; serrations avoid surface slipping without damaging mounting materials (wood, plastic).

2. Construction Engineering

1. Fastening of lightweight ceiling decorative parts.

2. Installation of aluminum alloy door/window hinges.

3. Fixing of wall-mounted decorative panels.

4. Mounting of temporary construction handrails.

5. Connection of partition wall hardware.

– Standards: ISO 4762 + serration; ASTM F835 ; DIN 912 Grade 8.8

– Anti-loosening efficiency: Serrations eliminate the need for additional lock washers, reducing on-site part count and speeding up installation.

– Vibration resistance: Critical for construction—serrations withstand minor building settlement or wind-induced vibration without loosening.

– Corrosion adaptability: Stainless steel A4-80 suits outdoor/coastal construction (e.g., balcony railings) to resist salt spray.

3. Light Machinery

1. Fixing of electric tool housings.

2. Mounting of small conveyor belt brackets.

3. Assembly of 3D printer components.

4. Fixing of small pump/motor end caps.

5. Installation of workshop tool benches.

– Standards: ISO 4762 + serration; DIN 912 Grade 8.8; ASTM F835

– Vibration durability: Serrations are critical for machinery—they lock the bolt in place, avoiding performance issues from loose components.

– Precision maintenance: Maintains component alignment (e.g., 3D printer print beds) where even minor shifting affects functionality.

– Load capacity: Grade 8.8 carbon steel handles medium mechanical loads (≤200kg); suitable for non-heavy-duty machinery.

Hexagon Socket Head Cap Bolt with Serration

Hexagon Socket Head Cap Bolt with Serration Application Scenario Table
