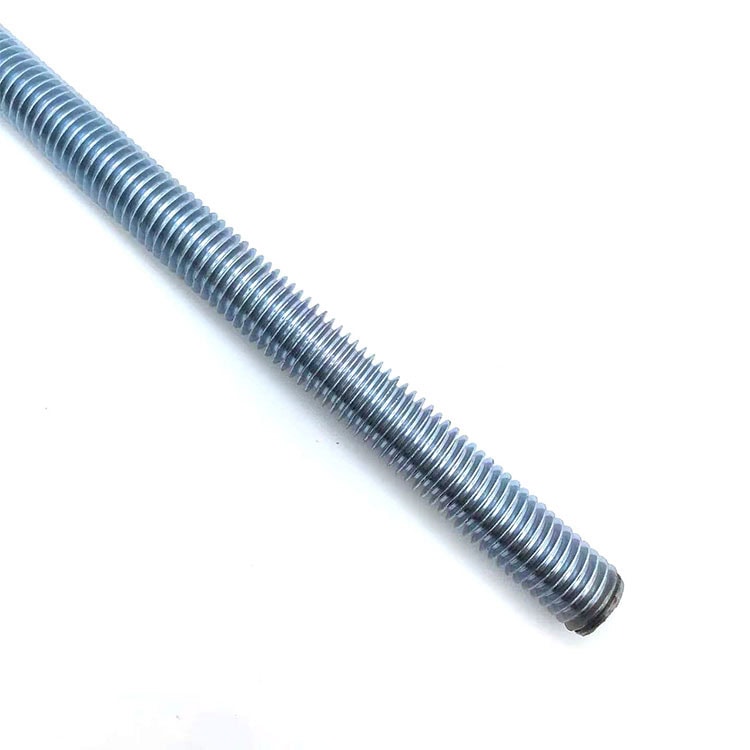

High-quality DIN 975 threaded rod for industrial fastening solutions.

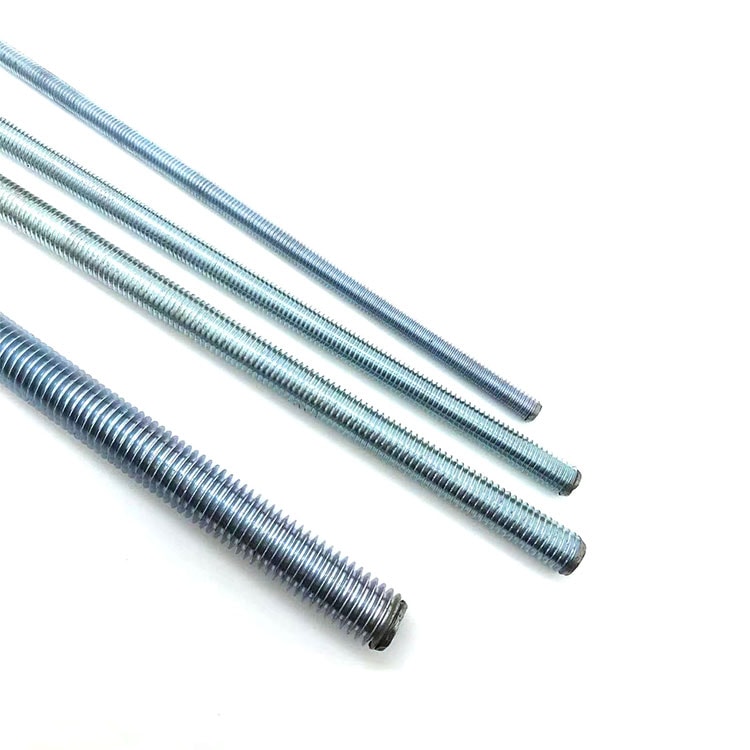

Steel DIN 975 threaded rods for construction and industrial use.

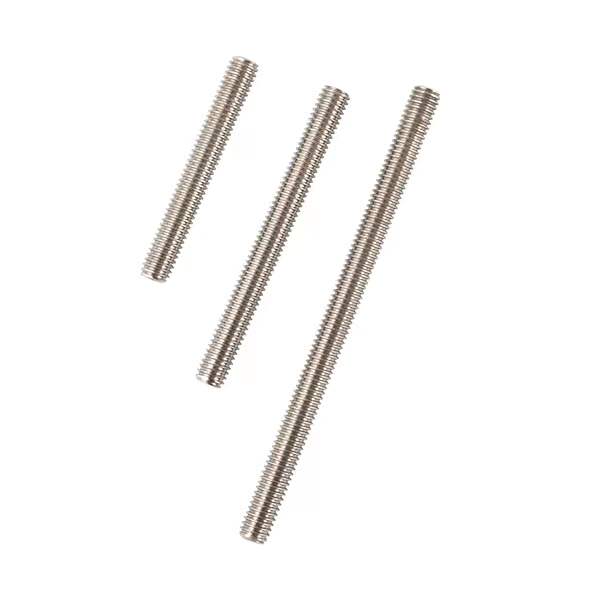

Three stainless steel DIN 975 thread rods of different lengths for mechanical use.
Click to enlarge
DIN 975 Thread Rod
High-quality DIN 975 threaded rod for industrial fastening solutions.
Steel DIN 975 threaded rods for construction and industrial use.
Three stainless steel DIN 975 thread rods of different lengths for mechanical use.

DIN 975 Thread Rod

  1. Standard: Complies with ISO 4762, DIN 975, ANSI B18.31.1; general-purpose threaded fastener
  2. Material: Carbon steel (Q235/45#), stainless steel (304/316), alloy steel (40Cr); strength grades 4.8/8.8/10.9 available
  3. Structure: Full-thread long rod + optional chamfered ends (for easy assembly)
  4. Surface Treatment: Carbon steel (zinc plating, Dacromet, black oxide); stainless steel (passivation)
  5. Size: Nominal diameter M3–M56, length 100–6000mm; metric/inch thread specifications optional
Category:
Description

Core features of Threaded Rod

  1. Wide Adaptability: Full-thread design matches nuts, washers, and brackets, suitable for splicing, hanging, and supporting
  2. Long-distance Connection: Extended length enables connection of distant components, ideal for construction and machinery
  3. High Load-bearing: Alloy steel/high-strength variants offer excellent tensile and shear resistance for heavy-duty scenarios
  4. Flexible Installation: Cuttable on-site to required length; easy to adjust tightness via nuts

Corrosion Resistance: Stainless steel/Dacromet coating versions adapt to humid, outdoor, or chemical environments



Product Parameter (Specification)

StandardDIN,ASTM/ANSI,ISOMaterialCarbon steel, Stainless Steel, Aluminum
Surface TreatmentZinc Plated,Galvanized,Black Oxide, Passivation,Sand Blast, PTFE, Teflon, XylanSizeM1.6-M100
PackingBulk cartons with pallet, small boxes in cartons with palletUnitePiece,KGS,TON



Product Application

Thread rod is widely used in heavy Industry, mining, water treatment, building, construction, equipment installation, decoration, general industry, Oil & Gas, etc.



DIN 975 Thread Rod Application Scenario Comparison Table

Application FieldSpecific ScenariosStandards & GradesKey Considerations
Industrial EquipmentMachinery supports, pipeline fixes, conveyor frame connections, equipment adjustment feet.DIN 975; Carbon steel (zinc-plated), Stainless steel 304 (A2-70).Full-thread design for adjustable length; High tensile strength; Compatible with nuts/washers for stable connections.
Construction EngineeringScaffolding joints, ceiling hangers, concrete formwork fixes, structural bracing.DIN 975; Carbon steel (hot-dip galvanized), Stainless steel 316 (A4-80).Indoor/outdoor corrosion resistance; Customizable cutting length; Suitable for medium-heavy load-bearing structures.
Light IndustryMetal storage rack assemblies, furniture adjustable legs, tool rack fixes, display stand supports.DIN 975; Carbon steel (black oxide), Stainless steel 304 (A2-70).Cost-effective for mass production; Easy to cut and install; Adapts to various assembly needs.
DIY & InfrastructureHome renovation supports, garden fence fixes, temporary structural bracing, hardware repairs.DIN 975; Carbon steel (zinc-plated), Stainless steel 304 (A2-70).User-friendly for non-professionals; Versatile for multiple scenarios; Durable for light-medium loads.
