DIN914 Hexagon Socket Set Screw with Cone Point

Complies with ISO 4026, DIN 914, ANSI B18.3; precision positioning-lock fasteners
Material: Carbon steel (45#), stainless steel (304/316), alloy steel (42CrMo); strength grades 4.8–12.9
Structure: Hex socket + headless design + cone point (tapered tip) + full thread
Surface treatments: Zinc plating, black oxide, passivation
Size M2–M16, length 6–50mm

Core Features of Hexagon Socket Set Screw with Cone Point

Cone point: Precise centering, enhances anti-rotation via point contact pressure
Hex socket: High torque transmission, fits narrow/recessed installation spaces
Headless design: No protrusions, avoids component interference
Full thread: Tight engagement, reliable locking against vibration
Suitable for shafts, gears, pulleys, and precision fixture positioning

Product Parameter (Specification)

Standard

DIN,ASTM/ANSI, ISO

Material

Carbon steel, Stainless Steel,Brass

Surface Treatment

Zinc Plated, Hop Dip Galvanized(HDG) phosphorization,

Black Oxide,Geomet,Dacroment,Nickel plated,Zinc-Nickel plated

Size

M1.6-M24

Unite

Piece,KGS,TON

Packing

Bulk cartons with pallet, small boxes in cartons with pallet

Product Application

Set screw is widely used in precision machinery, precision instruments, meters, electronic products, communication products, locks, toys, general industry, building, furniture, construction etc.

DIN914 Hexagon Socket Set Screw Application Scenario Table

Application Field	Specific Scenarios	Standards & Grades	Key Considerations
Household	Tool handle knobs, adjustable furniture joints, appliance internal shafts, DIY gear fixes, small motor parts.	DIN 914; Carbon steel 4.6/5.6 (zinc-plated), Stainless steel A2-70.	60° cone tip embeds for anti-loosening; Hex socket ensures stable torque; Fits hard wood/metal.
Light Machinery	Shaft collars, gear hubs, pulley locks, handwheel shafts, 3D printer lead screws.	DIN 914; Carbon steel 8.8/10.9, Stainless steel A2-70.	Point contact for strong torque transmission; Precision positioning; Resists vibration.
Electronic Devices	Sensor mounts, circuit board brackets, small gear shafts, smart device internal fixes.	DIN 914; Carbon steel 4.6 (nickel-plated), Stainless steel A2-70.	Compact, space-saving; Precise torque avoids component damage; Anti-corrosion in enclosures.
Industrial Accessories	Bearing retainers, mechanical fastener locks, transmission component fixes, precision tool joints.	DIN 914; Carbon steel 8.8/10.9 (heat-treated), Stainless steel A4-80.	High load-bearing; Secure embedding in hard materials; Suitable for industrial environments.

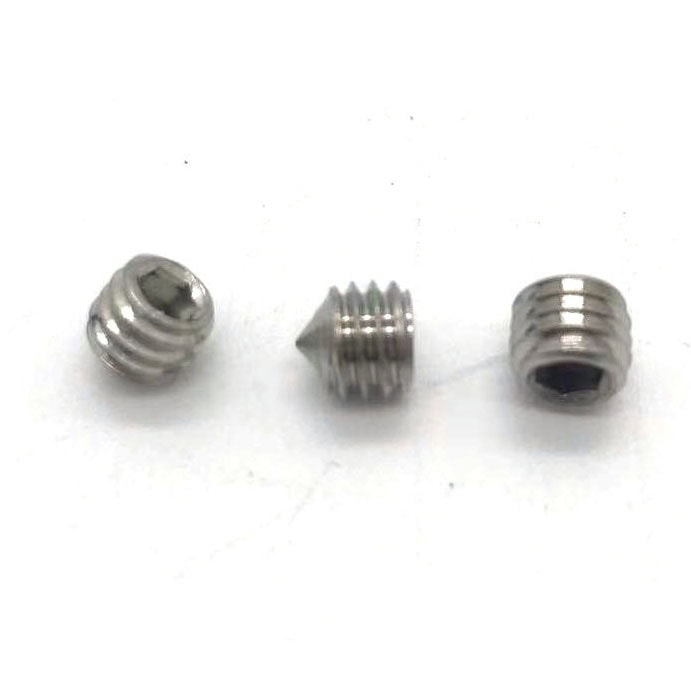

DIN914 Hexagon Socket Set Screw with Cone Point

DIN914 Hexagon Socket Set Screw Application Scenario Table
